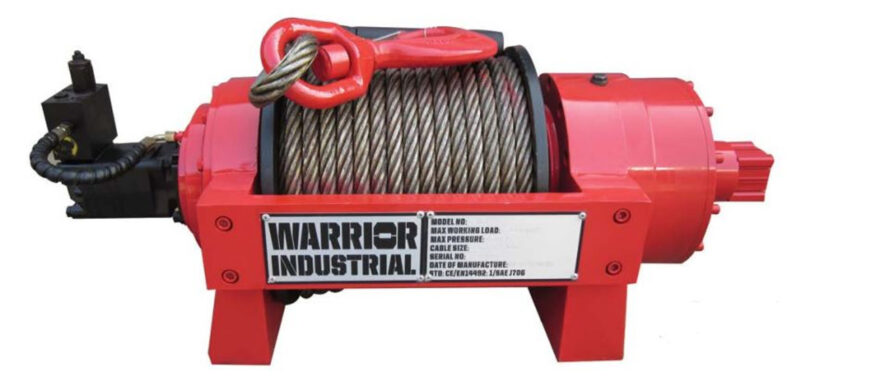

A brand new design to handle the toughest industrial applications. A superb heavy duty winch equipped with a hydraulic multiple disc brake designed to hold the load whenever hydraulic pressure to the winch is interrupted. A robust motor with two-way balance valve ensures great performance and a high safety factor. A 2-stage planetary high wear-resisting gear provides reliability and a weatherproof performance built to last a lifetime.

Warrior JP models have a combination of key features that set them apart from the competition. These include:

♦ A design which includes all the top specification product features on the market.
♦ A dual balance valve which can be operated in both the in and out direction.
♦ An excellent weight to strength ratio.
♦ The fastest rated line pull on any other comparable product.

This winch has been designed and built to last. It is manufactured to meet the requirements of EN 14492 : 1 Standard, has a design strength which is more than double its rated line pull and a mechanical structure that meets even a military standard.

Following a rated line pull durability test, during which a 75% load was applied over 500 cycles, no gear or motor damage was found.

Specifications:

♦ Line Capacity: 13,500kg (29762lb)
♦ Rope: 18mm x 50m (0.71″ x 164 ft) Steel Cable with Clevis Hook
♦ Drum Dia x L: 190 x 340mm (7.48 x 13.39″)
♦ Motor: Hydraulic 75L/min Max Flow at 170 Bar
♦ Gearbox: 36:1 Gear Ratio
♦ Warranty: 1 Year Standard Return to Irish Base Warranty
♦ Dimensions: 1050 x 640 x 405mm (41.34 x 25.2 x 15.9″)
♦ Mounting Bolt Pattern: 522 x 180/280mm (20.5 x 7/11″)
♦ Approx. Shipping Weight: 271 kg (597 lbs)

Line Pull and Speed Details:

Layers of Rope Line Pull: lbs(kgs) Line Speed: ft/min (m/min)
1 29700 (13500) 17 (5.17)
2 25700 (11700) 19.36 (5.9)
3 22700 (10300) 22.05 (6.72)
4 20500 (9300) 24.61 (7.5)
5 18500 (8400) 27.17 (8.28)
